Female compression fittings deliver a practical, reliable way for connecting pipes and tubing. They remove the need for solder or welded joints. This overview covers the essence of female compression fittings, breaking down how the compression nut and ferrule produce a tight seal. It also emphasizes their importance in both plumbing and HVAC applications.

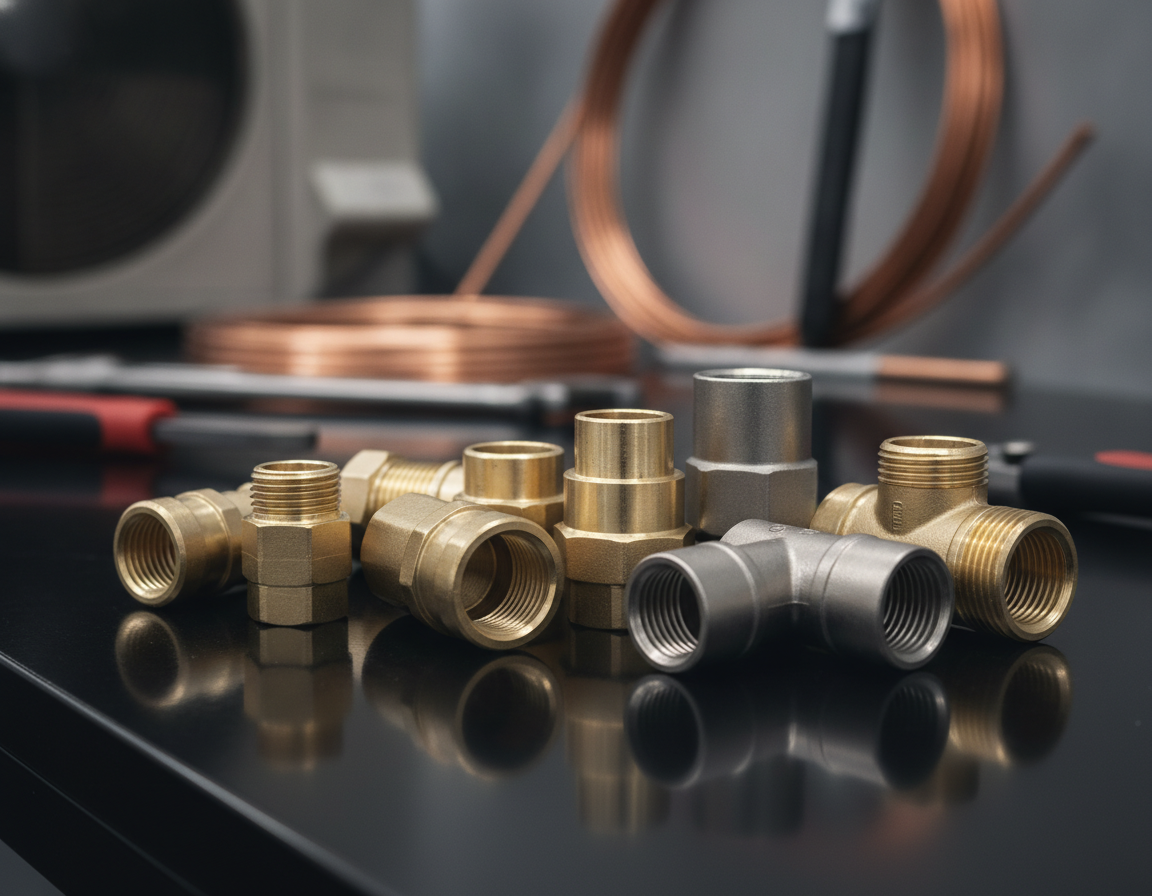

Female Compression Fitting
Opting for high-quality pipe fittings can meaningfully cut energy losses. This also helps stop refrigerant or water leaks, which can damage the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, need robust connections. Matching the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is important for long-term system performance.
In plumbing, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. By contrast, refrigeration lines require fittings that can tolerate thermal fatigue and keep a seal across a wide temperature range. InstallationPartsSupply.com and its product lines help meet these needs, offering common sizes and parts such as ferrules and compression nuts.
Important Highlights
- Female Compression Fitting uses a compression-nut and ferrule assembly to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—prevents corrosion and failure.
- Well-matched fittings help cut energy loss and stop refrigerant or water leaks in HVAC and plumbing systems.
- Helpful compression fitting guides and suppliers like InstallationPartsSupply.com simplify part selection.
- Check ferrules and tighten per manufacturer torque to support a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings join pipes and tubing without solder or welding. They are commonly used on copper, PEX, PVC, and stainless lines where heat or flame is not practical. Many professionals source parts from Installation Parts Supply to improve consistent quality and fit.
What A Compression Fitting Is And How It Works
A compression fitting uses a nut and a ferrule olive pressed against the pipe by the fitting body. Tightening the nut compresses the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This construction helps answer the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
HVAC Vs Plumbing Fittings: Key Differences
HVAC fittings must handle refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings are commonly selected for potable water, wastewater, and pressure from building systems. In HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC equipment such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing systems frequently rely on PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass parts such as ferrules offer resistance to wear and are common in many compression fittings. Stainless steel is suitable for corrosive or high-pressure environments.
PEX compression works well in domestic water lines because it handles freeze-thaw cycles and is flexible. PVC remains a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Fitting Material | Primary Use | Key Strengths | Restrictions |
|---|---|---|---|
| Copper | Cooling lines and drinking-water systems | Strong conductivity with durable performance | More expensive and vulnerable to mechanical damage |
| Brass Components | Compression fittings, nuts, and ferrules | Easy machining and corrosion resistance | Possible galvanic issues with dissimilar metals |
| Stainless steel | Harsh, high-pressure environments | Excellent durability with corrosion resistance | More expensive and harder to machine |
| PEX Pipe | Home hot-water and cold-water lines | Easy to route and tolerant of freezing conditions | Must be matched with proper PEX fittings |
| PVC Material | Drain, low-pressure chilled water | Economical with straightforward installation | Unsuitable for high heat or high pressure |
Why Proper Fitting Selection Affects Energy Efficiency And Leak Prevention
Selecting the proper fitting lowers leak risk and maintains system pressure. For refrigerant circuits, a poor joint can release refrigerant and lower efficiency. Tight seals and matched materials cut maintenance and lower energy waste.
Matching the right ferrule type and matching copper fittings or PEX compression hardware helps prevent galvanic corrosion and thermal fatigue. This approach supports service life and keeps HVAC and plumbing systems running efficiently.
Understanding Female Compression Fittings
A female compression fitting connects and seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This fitting creates tight connections without soldering, making it common in plumbing and HVAC. Adapters and unions support quick disassembly for service or instrument changes.
Female Compression Fitting Definition And Configurations
A common setup uses a female compression nut, a ferrule olive, and the fitting body. The nut threads onto the fitting body and compresses the ferrule to grip the tube. Common systems include unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Compatible Materials And Uses
Brass and copper are typical choices for refrigerant fittings and hot-water lines due to their ability to withstand thermal cycles and resist deformation. Stainless steel is chosen for high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Common Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
In plumbing, female compression fittings link stops, valves, and supply lines without solder. For HVAC systems, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Serviceable gas and instrument lines frequently use compression parts for leak-tight, serviceable connections.
Comparison With Male Compression Fittings And Adapters
A female fitting accepts a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter enables technicians interface service valves and gauges to the system. Using correctly matched materials limits galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Part | Typical Material | Usual Application | Maintenance Note |
|---|---|---|---|
| Female compression nut | Brass material | Plumbing supply lines, valve connections | Replace when rounded, cracked, or damaged |
| Ferrule sleeve | Brass and stainless options | Seals around copper, brass, or compatible PEX | Often not reusable after compression |
| Body of fitting | Machined brass or stainless | Instrumentation and HVAC refrigerant fittings | Confirm refrigerant and pressure compatibility |
| 3/8 Male Compression Fitting | Copper and brass | Connecting small tubing to female ports | Check thread and seat compatibility |
| 3/8 valve adaptor | Brass construction | Service-gauge interfaces and manifold hoses | Use with proper seals for refrigerant fittings |
| Installation Parts Supply inventory | Several material options | Supplier for matched fitting components | Match ferrules and nuts to protect system life |
Plumbing And HVAC Fitting Types, Sizes, And Related Adapters
This section delves into the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. The selection of these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings plus compression unions help create the creation of removable joints for maintenance and testing. Couplings are ideal for straight connections, while compression unions are preferred for components that need to be disconnected without disrupting the line. For small-diameter applications, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters are necessary for tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting helps connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, helping provide quick access on job sites.
Selecting the correct size is essential, depending on the tube’s outside diameter and the ferrule and nut set. Check that the female compression fitting size matches the tube OD to prevent leaks. For 3/8-inch applications, verify ferrule compatibility and torque specifications. Before final selection, check the system’s maximum pressure and temperature ratings before making a final selection.
The Max Adaptor and 3/8 Valve Adapter are useful for connecting gauges, service ports, and small refrigerant lines. These fittings streamline the process of charging and diagnostics in HVAC systems. For HVAC service, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Choosing material involves a trade-off between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Brass and copper work well in refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX can be used in low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental impact of fittings is influenced by leak prevention and recyclability. Proper metal compression fittings help limit refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
Below is a comparison to help choose between common options by application, pressure, temperature, and reusability.
| Fitting Style | Usual Application | Max Pressure Typical | Operating Temperature Range | Service Reuse |
|---|---|---|---|---|
| Brass compression coupling | Small plumbing runs, instrumentation, and refrigerant lines | As high as 3,000 psi when specified | -65°F to 250°F | Reusable only in some cases if undamaged |
| Serviceable compression union | Maintenance access and serviceable joints | Up to about 2,500 psi | Typical range from -65°F to 300°F | High, because it is designed for disconnects |
| 3/8 compression connection | Small-diameter water, instrument, and refrigerant lines | Rating varies by system and material | Review material specs before HVAC service | Moderate, though often replaced during service |
| Small male compression fitting | Connection to service valves and gauges | Rated for refrigerant service when brass/stainless | Suitable for typical HVAC cycles | Reusable when not damaged |
| Max Adaptor brass/stainless | Service-tool connection for gauge and valve interfaces | High rating for suitable service tools | Suitable for HVAC temperature cycles | Built for repeated connection and removal |
| Plastic water fittings | Low-pressure water and condensate lines | Low pressure only; not for refrigerant service | Commonly around 32°F to 140°F | Limited reuse depending on system and UV exposure |
Before buying, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Ensure that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
How To Install And Maintain Compression Fittings
Good installation begins with clean, square pipe ends and the right parts. When working with HVAC refrigerant lines, use copper and brass. For condensate lines or chilled-water systems, PVC or PEX is best. Always refer to manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How compression fittings are installed
1. First, cut and deburr the tube to a square face. 2. Next, slide the nut and ferrule onto the pipe in that order. 3. With softer plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Hand-tighten the nut, then use the two-wrench technique to finish the joint.
Recommended tools and techniques
Work with two wrenches to hold the fitting body and turn the nut to prevent tube twist. Follow tightening guidance from the fitting maker or Installation Parts Supply when available. Many installers snug by hand, then add a limited number of wrench turns.
Using pipe inserts correctly
Pipe inserts are essential for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not use inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common mistakes and ferrule removal
Do not under-tighten or over-tighten. Under-tightening may allow leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Compression ferrules are commonly not reused; plan to replace them when disassembling a joint.
Ferrule removal procedure
Shut off the supply and relieve pressure first. Hold the fitting body with one wrench while loosening the nut with a second. Remove the compression nut and pull out the ferrule. When the ferrule is seized, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
How to install a 3/8 Valve Adapter
When working on small 3/8″ valve connections, prepare the tubing the same way and follow the two-wrench technique. The 3/8 Valve Adapter process mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Routine inspection and maintenance
When pressure is restored, inspect joints for weeps and tighten slightly if needed. Include regular checks for corrosion and thermal fatigue, specially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Stage | Action | Tip |
|---|---|---|
| Preparation | Square-cut, deburr, and clean the pipe | Use proper cutting and deburring tools |
| Assemble | Place nut and ferrule in order before fitting assembly | Use inserts on PEX or PVC to hold tube shape |
| Tightening | Finger-tighten first, then apply two-wrench tightening | Follow manufacturer torque guidance |
| Pressure Test | Pressurize the system and look for weeps | Watch for slow weeps; re-torque slightly if safe |
| Service | Inspect often and replace ferrules during disassembly | Keep spares from Installation Parts Supply for quick repairs |
Final Thoughts
Using the correct compression fitting matters for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must align with the service type. That supports reliability and extends system life. Correct parts and proper installation can greatly reduce energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings provide a leak-free, solder-free solution. They are made up of a nut, ferrule, and body. To create a reliable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These practices help produce long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, make sure you match size and pressure ratings to the task. Trusted-supplier parts are essential. Installation Parts Supply guidance can help in finding compatible fittings and adapters. Routine inspections and correct selection help maintain system efficiency and compliance.
In closing, dedicating time to material selection and correct assembly is worthwhile. That helps create durable, leak-free connections. It supports optimal performance, fewer repairs, and less environmental harm.
