More than 60% of new broadband deployments in urban U.S. projects now require fiber-to-the-home. That rapid shift toward full-fiber networks underscores the growing need for high-performance production equipment.
Fiber Cable Sheathing Line
Fiber Draw Tower
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) delivers automated FTTH cable manufacturing line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines and control systems. The line produces drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, together with LANs.
That high-spec FTTH cable making machinery provides measurable business value. This line offers higher throughput and consistent optical performance using low attenuation. This line additionally aligns with IEC 60794 as well as ITU-T G.652D / G.657 standards. Customers see reduced labor costs together with material waste through automation. Full delivery services deliver installation as well as operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also includes SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs typically use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model includes on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also offers lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Main Takeaways
- FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
The fiber optic cable production process for FTTH calls for precise control at every stage. Producers rely on integrated lines that combine drawing, coating, stranding, as well as sheathing. That setup boosts yield together with speeds up market entry. The line addresses the needs of both residential as well as enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.

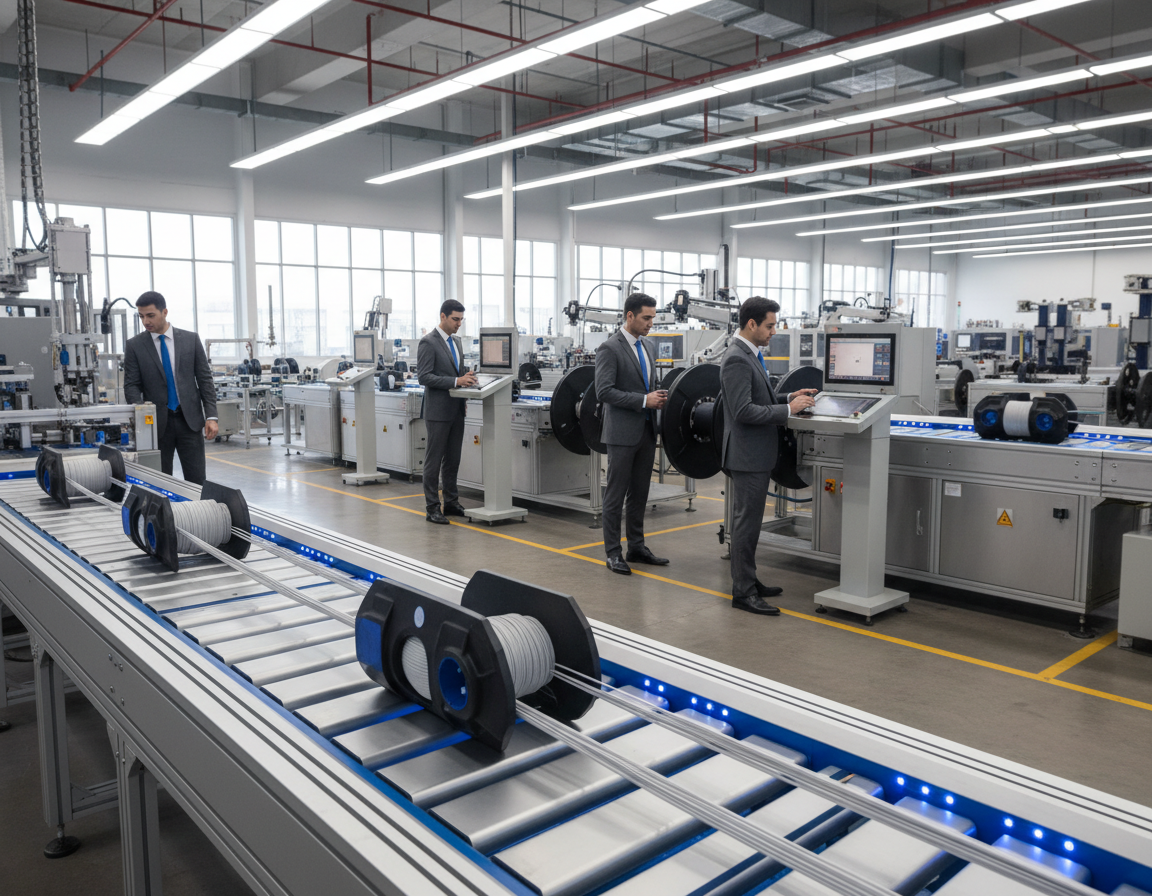

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities shift toward PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, and armored formats. This move supports automated fiber optic cable production and reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off together with take-up, keeps geometry stable during fast-cycle runs. Multi-zone temperature control using Omron PID and precision heaters supports consistent extrusion consistency.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Function | Typical Unit | Benefit |
|---|---|---|
| Fiber drawing | Automated draw tower with tension feedback | Consistent core diameter and low attenuation |
| Secondary coating | UV-curing dual-layer coaters | Even 250 µm coating that improves durability |
| Coloring | Multi-channel fiber coloring machine | Reliable color identification for field work |
| Fiber stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Accurate lay length across ribbon and loose tube designs |
| Sheathing & extrusion | Energy-saving extruders with multi-zone heaters | Precise jacket dimensions in PE, PVC, or LSZH |
| Cable armoring | Armoring units for steel tape or wire | Stronger mechanical protection for outdoor applications |
| Cooling and curing | Cooling troughs plus UV dryers | Rapid stabilization and fewer defects |
| Testing | Real-time attenuation and geometry measurement | Immediate quality verification and compliance data |
Compliance featuring IEC 60794 together with ITU-T G.652D/G.657 variants is standard. Producers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs as well as data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single as well as dual layer coating applications meet different market needs. Single-layer setups deliver basic mechanical protection as well as a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance together with stripability. That helps when fibers are prepared for connectorization.
Temperature control together with curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile together with reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, together with bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, together with PLC/HMI platforms from Siemens or Omron deliver robust control and monitoring for continuous runs.
Operational parameters guide preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Processing
This fiber draw tower is the core of optical fiber drawing. The line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand featuring precise diameter control. That stage sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower employs real-time diameter feedback and tension management. It helps prevent microbends. Cooling zones as well as closed-loop systems keep geometry stable during the optical fiber cable line output process. Current towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment as well as tension as the fiber enters coating, coloring, or ribbon count stations. That link supports the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, as well as geometric tolerances. These services help manufacturers scale toward high-output fiber optic cable production while maintaining ISO-level consistency checks.
| System Feature | Purpose | Typical Target |
|---|---|---|
| Multi-zone heating furnace | Uniform preform heating for stable glass viscosity | Uniform draw speed with controlled refractive profile |
| Live diameter control | Preserve core/cladding geometry and lower attenuation | ±0.5 μm tolerance |
| Tension and cooling management | Protect fiber strength while preventing microbends | Specified tension per fiber type |
| Automated pay-off integration | Reliable handoff to coating and coloring stages | Synchronized feed rates for zero-slip transfer |
| On-line test stations | Check attenuation, tensile strength, and geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Line Technology In Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness together with boost flexibility. That makes it ideal for drop cables, building drop assemblies, as well as any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing employ SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, together with haul-off units maintain constant linear speed as well as target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration featuring a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs featuring stranding through a Siemens PLC. Cooling troughs together with UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows together with cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring and identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors together with accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput as well as low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
Below, we discuss standards together with coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles as well as ribbon schemes. That consistency aids technicians in installation as well as troubleshooting. Consistent coding significantly lowers field faults as well as accelerates network deployment.
Quality control integrates advanced fiber identification systems into manufacturing lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, as well as coating flaws. This PLC/HMI interface alerts to issues as well as can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. That support model reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the employ of steel tape or wire units featuring adjustable tension and wrapping geometry. That approach benefits armored fiber cable line output by preventing compression of fiber elements. The line further keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling featuring SZ stranding and sheathing lines. These solutions include operator training together with maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility using armored fiber cable production modules, ease of changeover, as well as service support for field upgrades. Those points reduce downtime as well as protect investment in an optical fiber cable line output machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit manufacturing focuses on tight tolerances as well as material choice. Extrusion as well as buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, as well as LSZH for durability together with flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes as well as synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Feature | Fiber Ribbon Line | Compact Fiber Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical Speed | Up to roughly 800 m/min | Around 600–800 m/min | Greater throughput for large-scale deployments |
| Core processes | Automated alignment, epoxy bonding, curing | Buffering, extrusion, and precision winding | Stable geometry and reduced insertion loss |
| Primary materials | Specialty tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Durable performance and safety compliance |
| Testing | Real-time attenuation and geometry inspection | Dimensional control and tension monitoring | Reduced field failures and faster deployment |
| Line integration | Sheathing integration and splice-ready stacking | Modular units for high-density cable solutions | More efficient MPO trunk and backbone deployment |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- together with 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In Fiber Pulling Process
Servo-controlled pay-off together with take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. This goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-output quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. Such support reduces ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For United States manufacturers as well as system integrators, partnering with reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. That contains on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co deliver integrated solutions. These systems simplify automated fiber optic cable manufacturing as well as reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 together with ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings as well as standards, request detailed equipment specs and turnkey proposals, as well as schedule engineer commissioning and operator training.
